No Welding | No Machining | No Replacement
Pump Repair and Cavitation Protection
Rebuild eroded pumps, restore original clearances, and protect against future cavitation damage — all without hot work or equipment replacement.
What Is Pump Cavitation?
Cavitation occurs when vapor bubbles form in low-pressure areas of a pump and then collapse violently when they reach higher-pressure zones. Each bubble collapse creates a micro-jet of water that impacts the metal surface at speeds up to 500 mph, causing pitting, erosion, and material loss.
Over time, cavitation damage reduces pump efficiency, increases energy consumption, and can lead to catastrophic failure. The characteristic "gravel in the pump" sound is often the first warning sign.
Traditional repairs require welding, machining, or complete pump replacement — all expensive and time-consuming. Belzona composites offer a cold-applied alternative that rebuilds damaged surfaces and protects against future cavitation.
Signs Your Pump Needs Repair
Catching pump damage early saves money. Look for these warning signs:
Unusual Noise
Rattling, grinding, or "gravel" sounds indicate cavitation or worn bearings
Reduced Flow Rate
Worn impellers and increased clearances reduce pumping efficiency
Increased Energy Use
Damaged pumps work harder to move the same volume, driving up power costs
Vibration
Excessive vibration signals imbalance from erosion or worn components
Visible Pitting
Crater-like damage on impeller vanes, volute, or wear rings
Leaking Seals
Worn shaft sleeves and seal faces cause premature seal failure
The Belzona Solution
Belzona composites rebuild eroded pump surfaces to original specifications — or better. Unlike welding, there is no heat distortion, no stress cracking, and no need for post-weld machining.
For rebuilding: Belzona paste-grade composites (like 1111, 1121, and 1311) restore worn impellers, volutes, and casings to original dimensions. Product selection depends on the type of wear and operating conditions.
For efficiency and protection: Belzona 1341 (Supermetalglide) provides a smooth, low-friction surface that improves flow and can reduce energy consumption by up to 15%. Other coating options are available for chemical resistance, high temperatures, or specific service conditions.
Both rebuild and coating products are cold-applied by your maintenance team. No hot work permits. No confined space welding. No waiting for machine shop availability.
Why Cold-Applied Repair?
- +No heat distortion — maintains pump tolerances
- +No hot work permits — repair in place
- +No machining required — hand-applied to spec
- +Faster turnaround — hours, not days
- +Lower cost — fraction of replacement price
- +In-house repair — your team, our training
The Repair Process
A typical pump repair takes 4-8 hours of work time plus overnight cure. Here is how it works:
Surface Preparation
Blast or grind damaged areas to clean, angular metal. Remove all corrosion, scale, and contamination.
Rebuild Damaged Areas
Apply Belzona paste-grade composite to fill erosion pits and rebuild to original profile. Use templates or measurements to restore clearances.
Apply Protective Coating
Coat with Belzona for a smooth surface that improves efficiency and resists future damage. Coating selection based on service conditions.
Cure and Return to Service
Allow overnight cure at room temperature. Reassemble and return pump to service — typically within 24 hours.
Product selection depends on your specific application — pump type, fluid handled, temperature, and type of damage. We help you choose the right combination of rebuild and coating products for your situation. Call (425) 610-4902 to discuss your pump repair.
Belzona vs. Traditional Pump Repair
Cold-applied composites outperform welding and machining for most pump repairs — with less downtime and lower cost.
| Factor | Weld Repair | Replace Pump | Belzona Repair |
|---|---|---|---|
| Hot Work Required | Yes | No | No (cold-applied) |
| Machining Required | Usually | No | No (hand-finished) |
| Typical Downtime | 3-7 days | Weeks (lead time) | 24 hours (overnight cure) |
| Heat Distortion Risk | Yes | No | No |
| In-House Repair | Rarely | No | Yes (with training) |
| Relative Cost | $$ | $$$ | $ (lowest) |
Typical Repair Time
24 hrs
back in service
Efficiency Gain
Up to 15%
with smooth coating
Cost Savings
50-80%
vs. replacement
Products for Pump Repair
Rebuild, protect, and improve pump efficiency with these Belzona solutions.
Belzona 1111 (Super Metal)
General-purpose metal repair paste for rebuilding worn shafts, bearing housings, and pump casings. The foundation for many pump repairs.
Belzona 1121 (Super XL-Metal)
Extended open time paste-grade for larger repairs requiring more working time. Ideal for complex pump rebuilds and bigger erosion damage.
Belzona 1311 (Ceramic R-Metal)
Ceramic-reinforced composite for rebuilding eroded pumps, impellers, and casings. Excellent erosion and corrosion resistance for long-term protection.
Belzona 1341 (Supermetalglide)
Smooth, low-friction coating that improves pump efficiency by up to 15%. Reduces turbulence, lowers energy costs, and protects against erosion.
Belzona 2141 (ACR-Fluid Elastomer)
Flexible elastomer for cavitation protection. Absorbs bubble collapse energy to protect underlying metal in severe cavitation zones.
Belzona 1391T (Ceramic HT)
High-temperature ceramic coating for pumps in hot service. Resists immersion to 248°F (120°C) for boiler feed pumps and hot process applications.
Not sure which products you need? Call (425) 610-4902 — we will help you select the right combination for your pump and operating conditions.
Before and After
See the difference Belzona makes. These repairs were completed in the Pacific Northwest by maintenance teams using Belzona products.

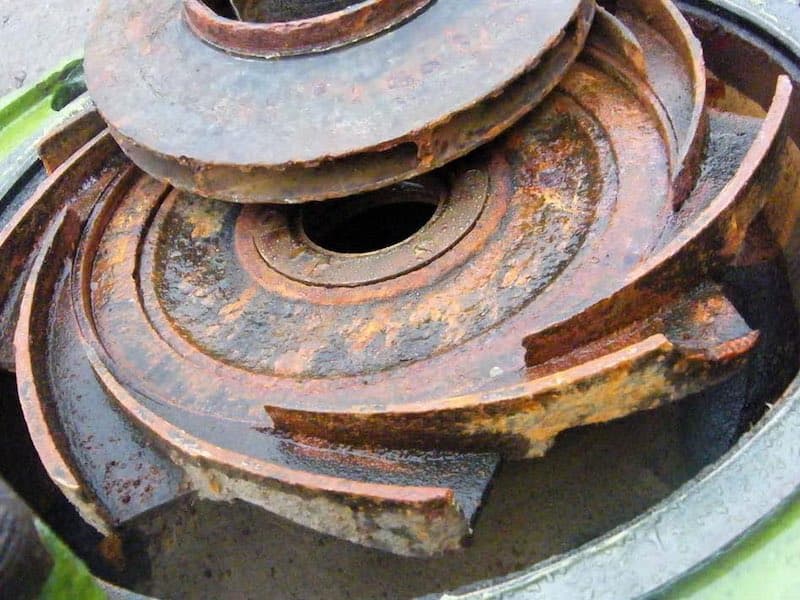

Before
Severe cavitation damage on pump impeller. Pitting and material loss reducing efficiency.

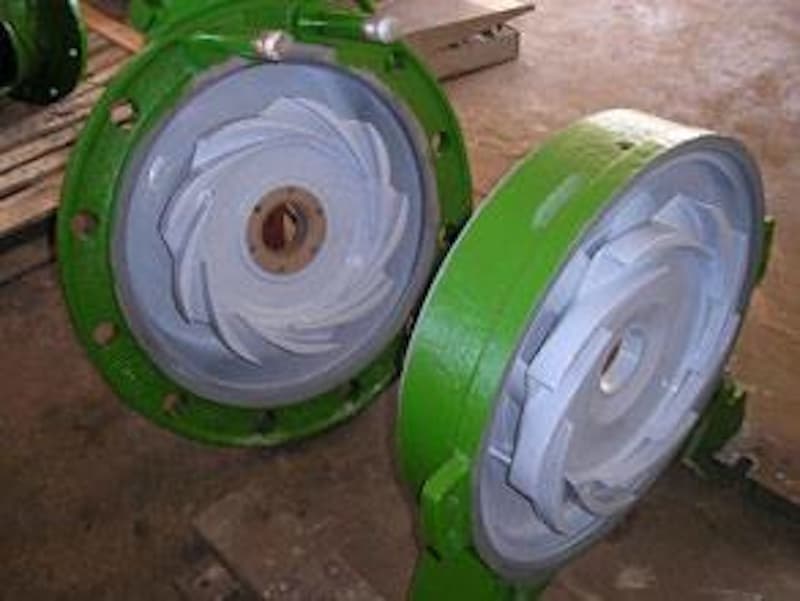

After
Rebuilt with Belzona paste-grade composite and coated for improved efficiency and protection.
Industries Using Pump Repair Solutions
Water and Wastewater
Raw water pumps, lift station pumps, sludge pumps, and process water systems.
Agriculture
Irrigation pumps, fertigation systems, and processing equipment throughout the Pacific Northwest.
Food and Beverage
Process pumps, CIP systems, and transfer pumps with FDA-compliant repair options.
Pulp and Paper
Stock pumps, white water pumps, and chemical feed pumps in mill environments.
Mining
Slurry pumps, dewatering pumps, and process pumps handling abrasive materials.
Power Generation
Cooling water pumps, boiler feed pumps, and circulating water systems.
Frequently Asked Questions
How long does a Belzona pump repair last?
Properly applied Belzona repairs typically outlast the original metal. Many repairs are still in service 10-15 years later. The ceramic-reinforced composites are actually more erosion-resistant than the parent metal in many cases.
Can we do the repair ourselves?
Yes. Belzona products are designed for application by maintenance personnel with proper training. We provide product training and technical support. Surface preparation is critical — we can guide your team through the complete process.
What size pumps can be repaired?
Belzona repairs work on pumps of all sizes — from small process pumps to large cooling water pumps. The same products and techniques scale to fit the application. We have helped repair pumps from 1 HP to over 1,000 HP.
Is Belzona repair approved for our industry?
Belzona products are used worldwide across virtually every industry. Specific approvals depend on your application — contact us with your requirements and we can provide documentation and guidance.
How much does pump repair cost compared to replacement?
Typical Belzona repairs cost 50-80% less than replacement, depending on pump size and damage extent. Factor in avoided downtime and the savings are even greater. We can help you estimate costs for your specific situation.
