No Hot Work | Cold Applied | In-Place Repair
HVAC Equipment Repair and Protection
Repair and protect chillers, cooling towers, boilers, and heat exchangers without welding or equipment replacement. Keep buildings comfortable year-round.
The Challenge
HVAC systems face constant attack from water chemistry, thermal cycling, and corrosive environments. Tube sheets corrode and erode. Cooling tower basins deteriorate. Chiller casings develop leaks. When critical HVAC equipment fails, buildings become uncomfortable and operations suffer.
Traditional repairs require welding, brazing, or complete equipment replacement — all expensive options that create extended downtime. Hot work in mechanical rooms requires permits, fire watches, and creates safety concerns. Replacement equipment has long lead times and high costs.
Pacific Northwest buildings face additional challenges from high humidity, marine environments near the coast, and seasonal temperature swings that accelerate corrosion and thermal stress.
The Belzona Solution
Belzona cold-applied composites rebuild and protect HVAC equipment without welding, brazing, or hot work permits. Repair corroded tube sheets in place. Protect cooling tower basins from chemical attack. Seal leaking chiller casings without replacement.
Metal repair composites restore tube sheets and heat exchanger components to original specifications. Protective coatings resist the corrosive water chemistry and thermal cycling that destroy conventional materials. Repairs can be completed during scheduled maintenance windows.
Belzona Technology Northwest provides product selection, training, and technical support for HVAC contractors and facility maintenance teams throughout Washington, Oregon, Alaska, and Northern Idaho.
Equipment We Help Protect
Belzona products are used across HVAC systems — including but not limited to:
Chillers
Tube sheets, shell casings, end covers, and internal components subject to corrosion and erosion
Cooling Towers
Basins, sumps, fill supports, distribution decks, and structural steel exposed to treated water
Boilers
Tube sheets, headers, casings, and condensate systems subject to thermal cycling and corrosion
Heat Exchangers
Tube sheets, shells, end bells, and channel covers requiring corrosion protection and leak sealing
Air Handlers
Coil casings, drain pans, plenums, and housings subject to condensation and corrosion
Pumps and Piping
Circulation pumps, condensate pumps, valves, and piping systems throughout HVAC infrastructure
Have different equipment? Call us at (425) 610-4902 — we have solutions for virtually any HVAC repair challenge.
Problems We Solve
Common HVAC equipment failures that lead to comfort complaints, energy waste, and expensive repairs — and more:

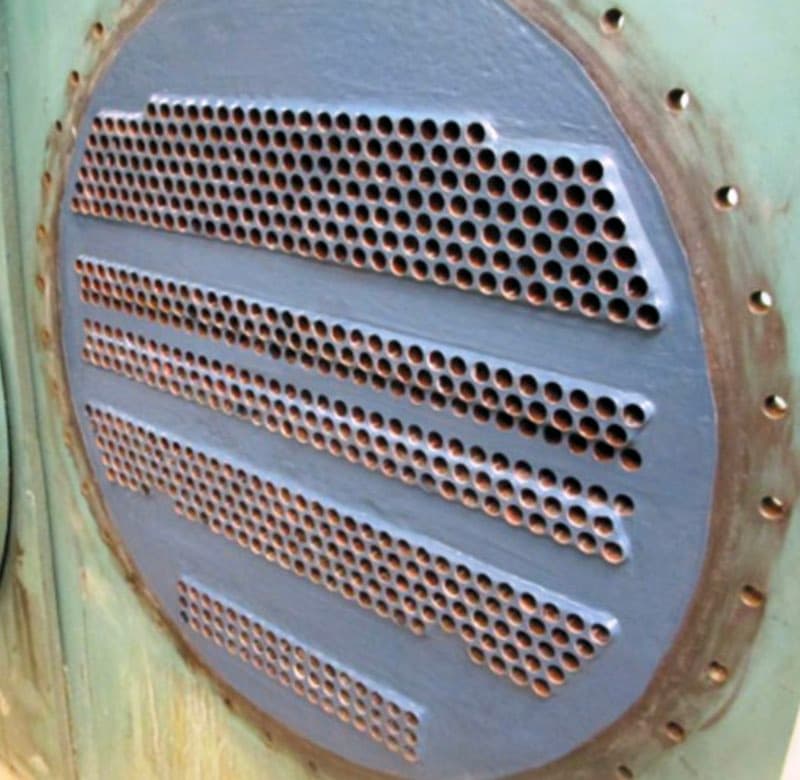

Tube Sheet Corrosion
Water chemistry attacks tube sheets on chillers and heat exchangers, causing pitting, erosion, and eventual leaks. Rebuild without replacement.

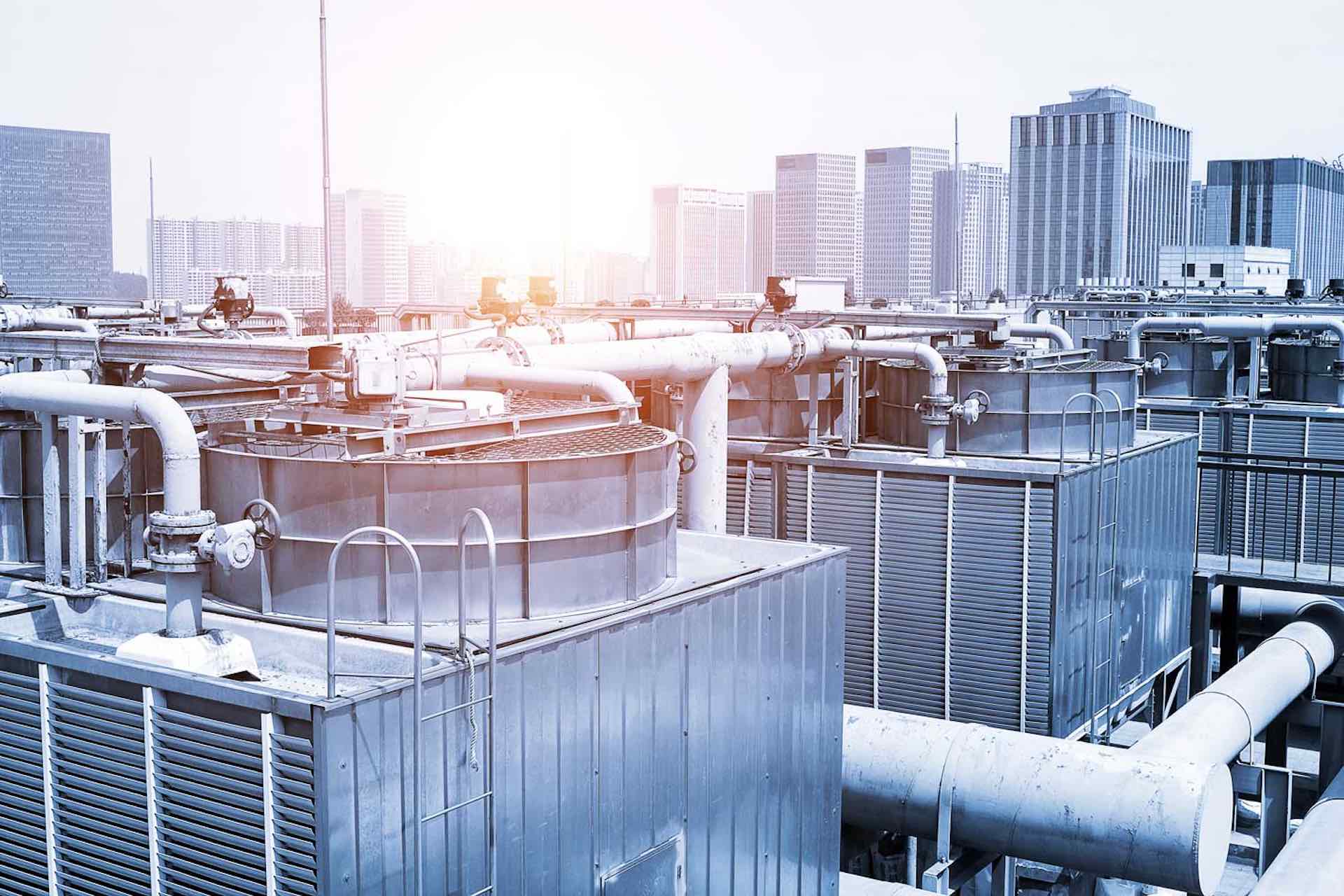

Cooling Tower Basin Deterioration
Concrete and metal basins deteriorate from chemical treatment, biological growth, and constant water exposure. Protective coatings extend basin life.
Chiller Casing Leaks
Corrosion and erosion create leaks in chiller casings and end covers. Cold-applied repairs seal leaks without welding or replacement.
Condensate Corrosion
Acidic condensate attacks drain pans, piping, and collection systems. Protective coatings resist condensate corrosion throughout the system.
Pump and Valve Wear
Circulation pumps and control valves wear from continuous operation and water-borne debris. Rebuild worn components in place.
Hot Work Restrictions
Welding and brazing in mechanical rooms require permits, fire watches, and create disruption. Cold-applied repairs eliminate hot work entirely.
Repair vs. Replace
When HVAC equipment fails, facility managers face a choice: wait months for replacement or repair in place with Belzona. The numbers speak for themselves.
| Factor | Equipment Replacement | Belzona Repair |
|---|---|---|
| Lead Time | 8-16 weeks for new equipment | Days — product in stock |
| Downtime | Weeks for removal and install | 24-48 hours typical |
| Cost | Full replacement cost | 10-30% of replacement (typical) |
| Hot Work Required | Yes — welding, cutting, brazing | None — cold applied |
| Building Disruption | Major — rigging, cranes, access | Minimal — repair in place |
| Extended Service Life | New equipment baseline | Often exceeds original (with coating) |
Typical Cost Savings
70-90%
vs. replacement
Return to Service
24-48 hrs
not weeks or months
Hot Work Permits
Zero
cold applied
Actual savings vary by application. Contact us for a repair assessment.
Products for HVAC
Metal repair composites, protective coatings, and concrete repair products for HVAC equipment and mechanical rooms.
Belzona 1111 (Super Metal)
General-purpose metal repair composite for rebuilding tube sheets, casings, and corroded components. 4,350 psi adhesion, machinable after cure.
Belzona 1321 (Ceramic S-Metal)
Ceramic-reinforced coating for erosion protection. 6,330 psi adhesion, excellent resistance to water flow erosion on tube sheets and internal surfaces.
Belzona 5811 (Immersion Grade)
Two-coat epoxy system for cooling tower basins, sumps, and immersed surfaces. Excellent chemical resistance to treated water and biocides.
Belzona 1212
Fast-curing repair composite for emergency repairs and quick turnaround. Ideal when equipment must return to service rapidly.
Belzona 4111 (Magma-Quartz)
Concrete repair for mechanical room floors, equipment pads, and cooling tower basins. 13,000 psi compressive strength.
Belzona 4311 (Magma CR1)
Chemical-resistant coating for secondary containment, battery rooms, and areas exposed to acids and chemicals.
Need help selecting the right product? Call (425) 610-4902
Case Study

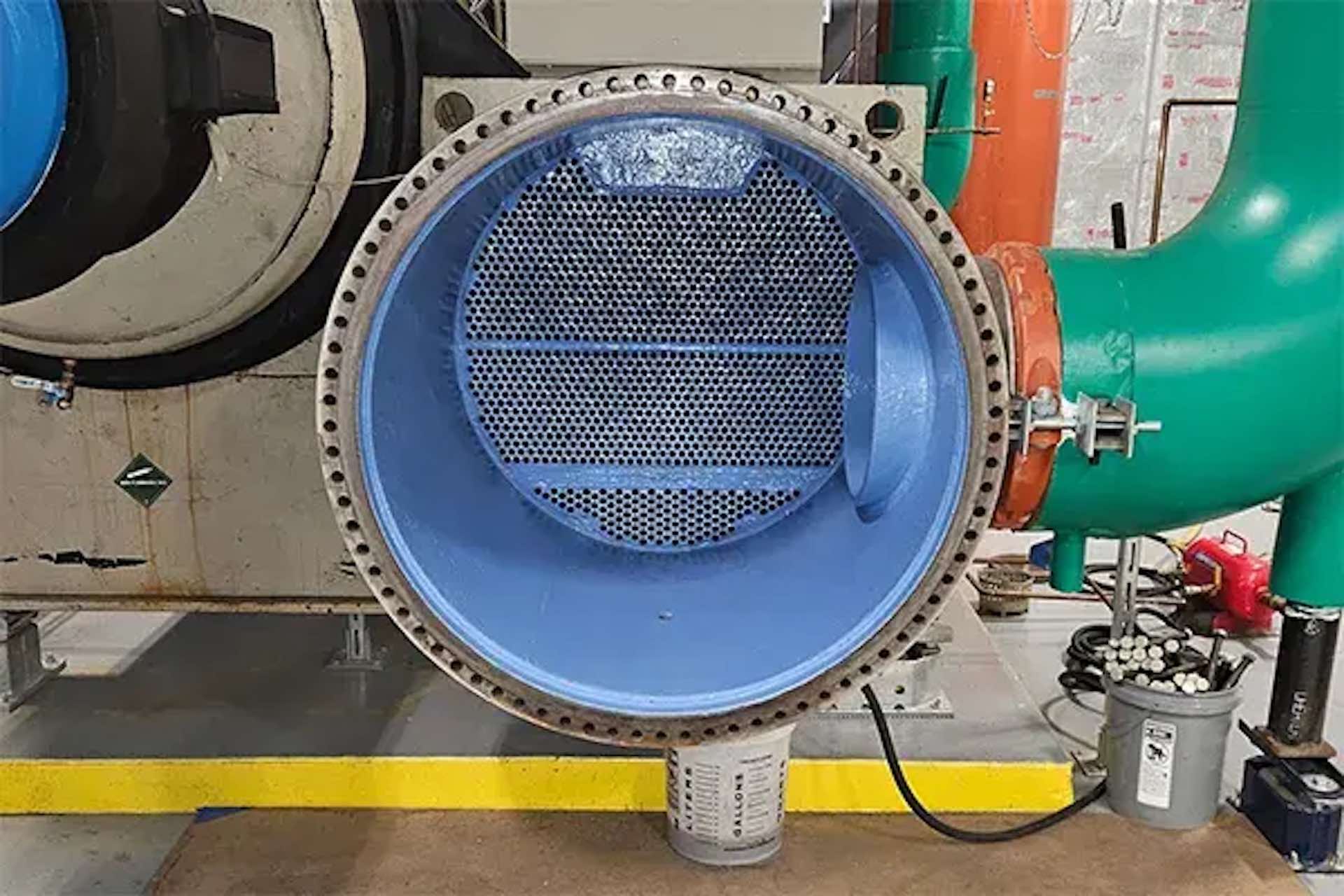

Chiller Tube Sheet Rebuild
A commercial building in Seattle was experiencing refrigerant leaks from their 500-ton chiller. The tube sheets had severe corrosion and erosion damage from years of water treatment chemistry. Replacement quotes came in at over $200,000 with a 12-week lead time — right before cooling season.
The maintenance team used Belzona 1111 (Super Metal) to rebuild the corroded tube sheet surfaces and Belzona 1321 (Ceramic S-Metal) to provide erosion-resistant protection. The repair was completed over a weekend with the chiller back in service Monday morning — at a fraction of replacement cost.
- +Chiller repaired in place — no removal or rigging
- +Completed over a weekend — back in service Monday
- +Cost: approximately 15% of replacement quote
- +No hot work permits required
Project Details
- Facility TypeCommercial Office Building
- ApplicationChiller tube sheet rebuild
- Products UsedBelzona 1111, Belzona 1321
- ProblemTube sheet corrosion and erosion
- Cost Savings~85% vs. replacement
- LocationSeattle, Washington
Frequently Asked Questions
Can tube sheets really be repaired instead of replaced?
Yes. Belzona composites can rebuild corroded and eroded tube sheets to original specifications. The repaired surface often outlasts the original metal due to superior corrosion and erosion resistance. We assess each situation to confirm repair is appropriate.
How long does a typical HVAC repair take?
Most HVAC repairs can be completed in 24-48 hours, including surface preparation, application, and cure time. Complex repairs may take longer. We help plan repairs to fit your maintenance windows and minimize building disruption.
Will the repair handle the water chemistry in our system?
Belzona products are specifically designed for immersion service and resist the water treatment chemicals, biocides, and corrosive conditions found in HVAC systems. We can recommend products based on your specific water chemistry.
Can our maintenance team apply Belzona products?
Yes. Belzona products are designed for application by maintenance staff with proper training. We provide product training and technical support throughout the Pacific Northwest. Many facilities keep Belzona products on hand for routine repairs.
Do you work with HVAC contractors?
Yes. We supply products and training to HVAC contractors throughout Washington, Oregon, Alaska, and Northern Idaho. Contact us to discuss contractor partnerships and volume pricing.
HVAC Applications
Chillers and Heat Exchangers
- +Tube sheet rebuilding
- +Shell and casing repair
- +End cover sealing
- +Erosion protection
- +Leak sealing
Cooling Towers
- +Basin lining and repair
- +Sump protection
- +Fill support repair
- +Structural steel coating
- +Distribution deck repair
Mechanical Infrastructure
- +Pump rebuilding
- +Valve repair
- +Pipe leak sealing
- +Equipment pad repair
- +Drain pan coating
Need HVAC Equipment Repair Products?
Describe your equipment problem and we will recommend the right Belzona products. Product training and technical support for HVAC contractors and facility teams throughout Washington, Oregon, Alaska, and Northern Idaho.
Belzona Technology Northwest is the exclusive authorized Belzona distributor for Washington, Oregon, Alaska, and Northern Idaho. Product sales, training, and technical support for HVAC equipment repair throughout the Pacific Northwest.
